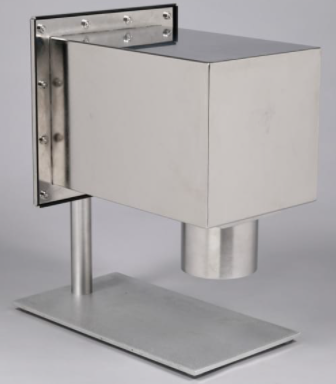

수분측정기 (고체)
HOME > 제품소개 > 수분측정기 (고체)
| Product | Features & Benefits | Data |
|---|---|---|
 |
|
카다로그
* 측정항목 및 규격
Moisture Range : 0-95%, ±0.1% to 0,01%
Coating Range : 0.01gsm - 1000gms, ±0.1gsm
Fats/Oils Range : 0-50%, ±0.1%
재현성 : ±0.1% of measured value
Calibration : Factory Pre-Calibration (Routine Re-calibration not required)
응답속도 : 0.01ses to 1000sec
사용온도 : 0 - 50℃
Option : High Temp Versions Available
Sensor/Sample Distance : 10 - 35cm ( 4 to 14inch )
Sample Size : Approximately 25mm ( 1 inch ) in diameter on sample
Sensor : Cast aluminum hosing ( IP65, NAMA4)
크 기 : 31cm X18cm X16cm (12.1 x 7.1 x 6.4 inch )
무 게 : 7kg ( 15.5 pounds)
출 력 : 4-20mA, RS232/485, IR and PDA
전 원 : 85 - 250VAC 50/60Hz, 25 watts
Network : Ethernet, DeviceNet Profibus
보증기간 : 2년
Lamp & Motor 수명 : 약 20년
Moisture Range : 0-95%, ±0.1% to 0,01%
Coating Range : 0.01gsm - 1000gms, ±0.1gsm
Fats/Oils Range : 0-50%, ±0.1%
재현성 : ±0.1% of measured value
Calibration : Factory Pre-Calibration (Routine Re-calibration not required)
응답속도 : 0.01ses to 1000sec
사용온도 : 0 - 50℃
Option : High Temp Versions Available
Sensor/Sample Distance : 10 - 35cm ( 4 to 14inch )
Sample Size : Approximately 25mm ( 1 inch ) in diameter on sample
Sensor : Cast aluminum hosing ( IP65, NAMA4)
크 기 : 31cm X18cm X16cm (12.1 x 7.1 x 6.4 inch )
무 게 : 7kg ( 15.5 pounds)
출 력 : 4-20mA, RS232/485, IR and PDA
전 원 : 85 - 250VAC 50/60Hz, 25 watts
Network : Ethernet, DeviceNet Profibus
보증기간 : 2년
Lamp & Motor 수명 : 약 20년
