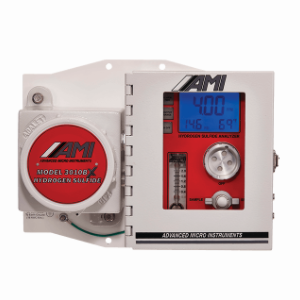

황화수소 (H2S)
HOME > 제품소개 > 황화수소(H2S) /헬륨 분석기 > 황화수소 (H2S)
| Product | Features & Benefits | Data |
|---|---|---|
 |
|
카다로그
• 3 standard user selectable output ranges to choose from:
0-10ppm, 0-50ppm, 0-100ppm
Optional output ranges available: 0-500ppm, 0-1000ppm and
2000ppm
The user selection of an output range simultaneously controls the
two alarms, the analog output and the data logger so that all 4
functions operate on the same range
• Digital display: High resolution 3 ½ digit LCD. Reads full scale
from 0.00ppm to 100ppm independently of output range
selection
• Alarms: 2 fully adjustable Hydrogen Sulfide (H2S)
concentration alarms
Dry contacts 5A. @24VDC/115VAC
• Alarm delays: Programmable from 0-300 minutes
• Alarm hold off: Programmable from 0-120 minutes
• Isolated analog output signal: 1-5VDC or 4-20mA
Represents the output range selected: 0-10ppm, 0-50ppm,
0-100ppm
• Data logger: Logs data for 15 days @ 1 minute intervals,
30 days @ 2 minute intervals, etc.
Represents the output range selected: 0-10ppm, 0-50ppm,
0-100ppm
• Power requirements: 10-28VDC/ 115VAC
<70mA. @ 12VDC non heated
<24W @12VDC with heated option
• Minimum detection: 50ppb of Hydrogen Sulfide (H2S)
• Repeatability: +/- 1% of range or +/- 0.2ppm of H2S,
whichever is greater
• Operating temperature range:
25 to 115˚ F non-heated; -20 to 115˚ F heated option
• Diurnal temperature specification:
< +/- 2 % of scale over temperature range
• 90% full scale response times for specified range:
0-100ppm <120 seconds @ 1.5SCFH
0-2000ppm < 120 seconds @ 1.5SCFH
• Response to Methyl Mercaptan: 40% of actual concentration
• Response to Sulfur Dioxide: 18% of actual concentration
• Area Classification: Designed to meet UL-913 and UL-1203
Class 1, Div. 1, Groups B,C,D with a flammable gas sample
• Inlet gas pressure: 0.5 to 150psig
• Gas connections: ¼" 316 S.S. compression fittings
• Wetted parts: 316 S.S. fittings, electroless nickel plated
cellblock, gold plated contacts, acrylic flow meter and
Viton O-rings
• Recommended flow rate: from 1.0 to 1.5 SCFH
• Mounting: Wall mount or 2.0" pipe
• Dimensions: 13.0"W x 9.5"H x 5.0"D
• Weight: 16 lbs.
• Patent Pending Cellblock Technology: Allows for
all components such as: Flow control valve, flow
meter, 3-way selector valve; Sample/Span/Off and
compression fittings to be an integral part of the
cellblock. This eliminates long lengths of tubing and
fittings. Other benefits of this design include:
compact size, faster response times and front panel
sensor access without the need for tools.
