-Paramagnetic sensor :P1D 자동온도 조절 및 보상기능
-초고순도 산소분석시 자동기압 및 압력보상기능(option)
-자동교정기능 (option)
-자동 측정 범위 설정 및 LCD 표시 기능
-특정 가스의 산소 보상 기능
-정확한 산소 분석 및 직선성
-RS232 & 485 통신
-Software 이용한 Data 관리
-분석가스 : 초순순산소, 산소
-측정범위 : 산소 0.01% 부터 100%
-출    력 : RS232/485, Analog output
-알    람 : High/Low, Fault alarms
-압력 보상 기능 800-1100mBar
-샘플 시스템 : 밸브, 유량계등, 펨프, 유량계, 알람, 스텐레스스틸 (옵션)
-측정 시 주의가스 : H2, Butane, CO, H2S 등 폭팔성가스

       Paramagnetic Cells이란? 기술자료 바로 보기

• Chemical/Petrochemical - Chemical & High purity gas production, Hydrocarbon refining, Natural gas transmission
• Curing - Electron beam, Ultraviolet
• Electronics - Solder powder production, Semiconductor furnaces, Gas quality
• Metals - Heat treating / Annealing, Steel production, Alloys and powdered metals
• Pharmaceutical - Inert packaging, Vessel blanketing, Fermentation
• Process - Ceramics, Combustion analysis, Contact lens manufacturing, Food packaging, Glass fibre optics, Inert gas welding, Lamp manufacturing, Air separation
• General - Controlled environments, R&D, Glove boxes, Oxygen deficiency
• Medical Gas - USP 37, European Pharmacopeia(EP) 기술자료 바로 보기

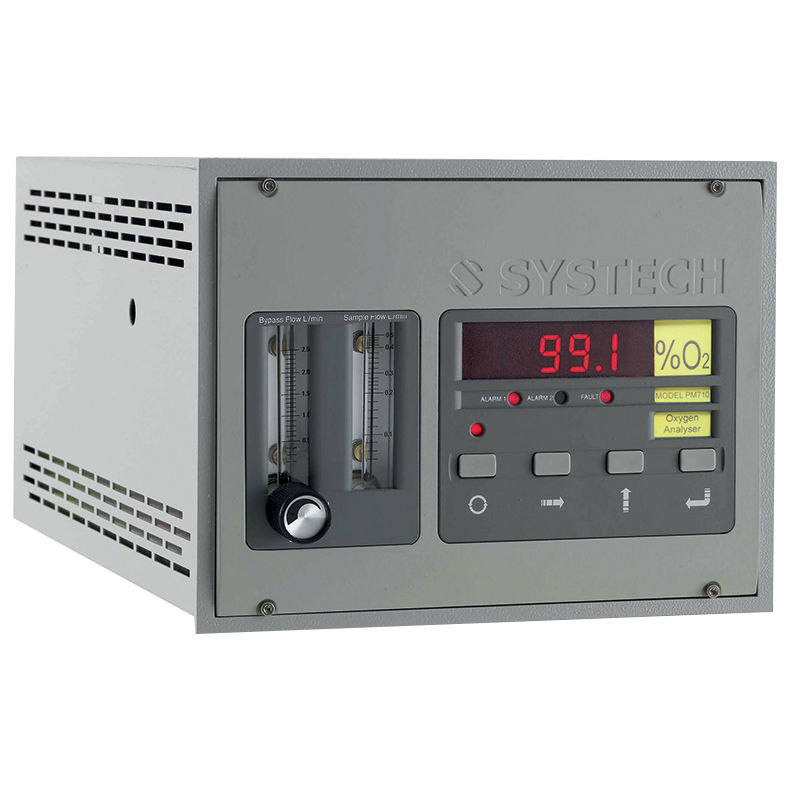

Medical Gas standard USP37 requires a specific, selective and positive identification test using a paramagnetic signal. Regular analysis of medical gas is required to ensure that the oxygen concentration is NLT 99.0% volume. Following the appropriate United States Pharmacopeia standards, in this case specifically USP37, requires an analyzer which uses a paramagnetic based technology.  The paramagnetic PM700 oxygen analyzer from Systech Illinois is ideally suited for this medical gas analysis application.

The technology required for this standard has a paramagnetic sensor which utilizes the paramagnetic susceptibility of oxygen, a physical property which distinguishes oxygen from most other gases. The sensor incorporates two nitrogen-filled glass spheres mounted on a rotating suspension. This assembly is suspended in a strong magnetic field. The oxygen in the surrounding gas is attracted to the magnetic field, resulting in a force on the glass spheres. The strength of the torque acting on the suspension is proportional to the oxygen content of the surrounding gases.

Utilising the well proven magneto-dynamic (dumb bell) transducer, the PM700 offers high performance oxygen analysis. It incorporates user-friendly software to provide accurate and reliable results with a non-depleting sensor providing years of trouble free operation.

Our PM700 Paramagnetic analyzer can be used for the following applications:

• European Pharmacopeia 2.5.27 Oxygen in Gases
• EP monograph of Argon – IDENTIFICATION A. “Verify that the gas is not oxygen using a paramagnetic analyzer (2.5.27).”
• USP 37 Medical Air (19.5% to 23.5%)
• USP 37 Oxygen NLT 99.0% by volume
• Aviator’s Breathing Oxygen (ABO)
• Breathable Air (BA)
• Liquid Oxygen (LOX) Type II Grade A
• CA OSHA 1910.134 CGA Grade D – for SCBA or Airline Respirators

Systech Illinois can also offer an analytical solution in relation to the European Pharmacopeia 2.5.28 which states that moisture in gases shall be determined using an electrolytic hygrometer. The Electrolytic P2O5 Moisture Analyzer MM510 from Systech Illinois is perfectly suited for this application.
