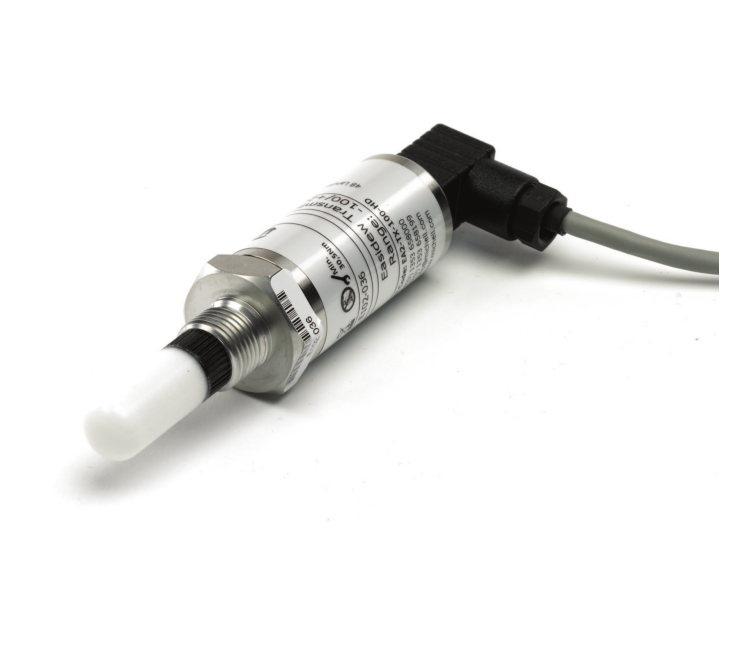

노점계
HOME > 제품소개 > 수분분석기 (가스,노점계) > 노점계
| Product | Features & Benefits | Data |
|---|---|---|
 |
|
카다로그
Performance
Measurement range -100 to +20°C dew point (-148 to +68°F)
0–3000 ppm
Measurement accuracy ±2°C dew point (±3.6°F)
Response time 5 mins to T95 (dry to wet)
Repeatability 0.5°C dew point (0.9°F)
Electrical output/input
Output signals 4-20 mA (2-wire) current source,
configurable over the entire range
Dew point -100 to + 20°C
(-148 to +68°F)
ppmv 0 - 3000
ppmv output or non-standard dew point
range must be speci? ed at time of order
Supply voltage 12–28 VDC
Load resitance Max 250 Ω @ 12 V
500 Ω @ 24 V
Current consumption 60 mA max
Supply voltage in? uence ±0.005% RH/V
Operating conditions
Operating humidity 0–100% RH
Operating temperature -40 to +75°C (-40 to +167°F)
Operating pressure 6527 psig max
Flow rate 1 to 5 Nl/min (2.1 to 10.5 scfh) mounted
in standard sampling block; 0 to 10 m/sec
(0 to 32.8 ft/sec) direct insertion
Temperature coef?cient Temperature compensated across
operating temperature range
Mechanical specification
Ingress protection IP66 in accordance with standard
BS EN 60529:1992, and NEMA 4 in
protection accordance with standard
NEMA 250-2003
Housing material Stainless steel
Dimensions 132mm x ø27mm (5.19” x ø 1.00”)
Filter HDPE Guard <10 μm
80μm sintered guard (optional)
Weight 150g (5.29oz)
Electrical connections See table
Interchangeability Fully interchangeable transmitters
Fault conditions
(factory programmed)
Condition
Sensor fault
Under-range dew point
Over-range dew point
Output
23 mA
4 mA
20 mA
