Sensor Type
Thin-? lm aluminum oxide
Moisture Probe Compatibility
Compatible with all GE M Series aluminum oxide
moisture probes and VeriDri transmitters
Dew/Frost Point Temperature
• Overall range capability: 140°F to –166°F
(60°C to –110°C)
    • Standard 68°F to –112°F (20°C to –80°C) with data
 to -166°F (–110°C)
    • Extended 140°F to –85°F (60°C to –80°C) with data
 to 166°F (–110°C)
• VeriDri ranges include:
    • –110°C to 20°C
    • –110°C to –50°C
    • –90°C to 10°C
    • –80°C to –30°C
    • –80°C to 20°C
    • –30°C to 20°C
    • –130°F to 70°F
    • –130°F to –40°F
    • –40°F to 70°F
    • –50°F to 50°F
    • –100°F to 0°F
Calibrated Accuracy at 77°F (25°C)
• ±3.6°F (±2°C) from –85°F to 50°F (–65°C to 10°C)
• ±5.4°F (±3°C) from –112°F to –86°F (–80°C to –66°C)
Repeatability
• ±0.9°F (±0.5°C) from –85°F to 50°F (–65°C to 10°C)
dew/frost point
• ±1.8°F (±1.0°C) from –112°F to –86°F (–80°C to –66°C)
dew/frost point

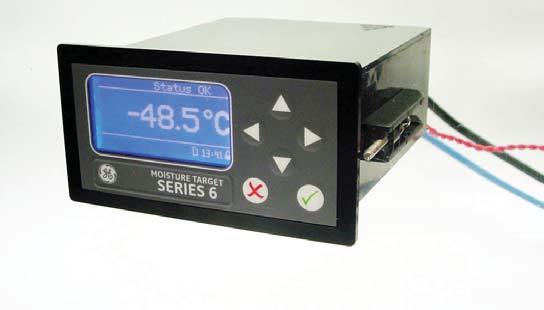

This single-channel analyzer measures moisture in compressed air and gases.                                  Desingned for permanent installations,it is used in conjunction
with M Series moisture probe or VeriDri moisture
transmitter for air/gas dryer original equipment
manufacturer (OEM) applications:
• Regenerative desiccant air or gas dryers
• Plastic drying applications prior to injection/
blowmolding
• Medical air dryers
• Glove box monitoring
