노점계

HOME > 제품소개 > 수분분석기 (가스,노점계) > 노점계
Product Features & Benefits Data

확대보기

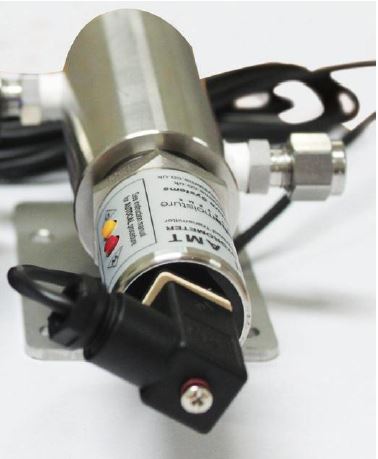

AMT_노점계_트랜스미터형_Dewpoint
• 2 Wire Loop Powered Dewpoint Transmitter
• Overall Range -120°C to +20°C Dewpoint
• Accuracy ±2°C Dewpoint          •  AUTOMATIC CALIBRATION
• Can be Configured for Linear 4-20mA signal in:
  °C & °F Dewpoint,ppm(v),ppb(v),lb/MMSCF
• Temperature Compensation             •  Failure Diagnostics
• Long Term Stability                         •  Fast Reponse
• IP 66 / NEMA4X Protection
이전패이지
MODEL AMT Dewpoint Hygrometer  4-20mA Loop Powered Transmitter
TRANSMITTER TYPE: 2 Wire,4-20mA Loop Powered Transmitter
OUTPUT SIGNAL: 4 to 20mA Linear
OPERATING VOLTAGE:7V-28V dc,Reverse polarity protected
MAXIMUM SERIES RESISTANCE:={40x(Supply Voltage -7)} ohms
SENSING ELEMENT:ultra High Capacitance-Aluminium Oxide Type
ACCURACY:±2°C dewpoint
RESOLUTION:6 micro-amps
REPEATABILITY:Better than ±0.3°C dewpoint
OPERATING TEMPERATURE:-20°C to +60°C
STORAGE TEMPERATURE:-20°C to +70°C
