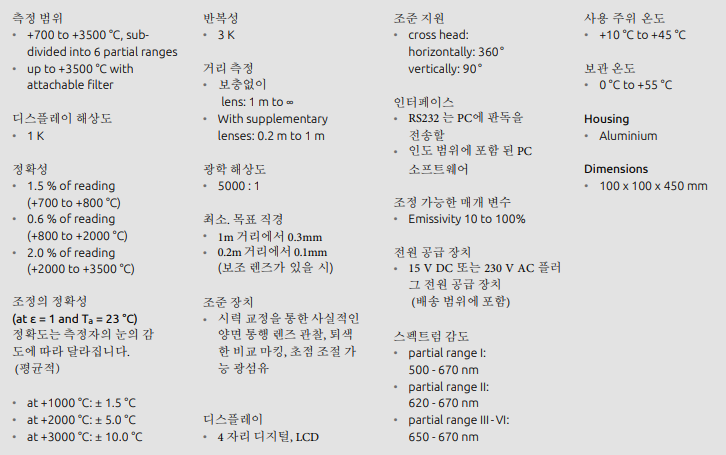

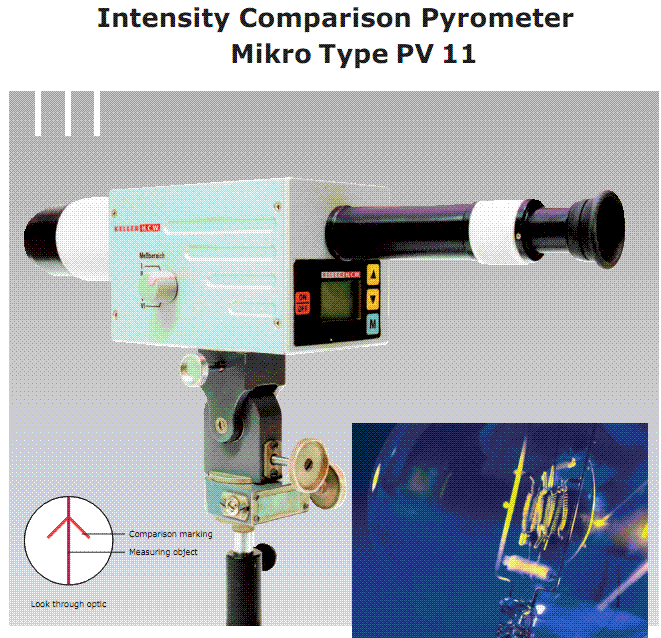

Measuring Ranges: (switch able) I 700 - 800 °C II 780 - 950 °C III 900 - 1100 °C IV 1050 - 1500 °C V 1450 - 2100 °C VI 2000 - 3000 °C up to 3500 °C with grey filter attached in front Resolution: 1 K Measurement uncertainty: 1.5 % of the measured value (700 ... 800 °C) 0.6 % of the measured value (800 ... 2000 °C) 2.0 % of the measured value (2000 ... 3500 °C) Response time: The adjustment accuracy depends on the eye of the viewer. It is on average: at 1000 °C ± 1.5 °C at 2000 °C ± 5.0 °C ati 3000 °C ± 10.0 °C Repeatability: 3 K Measuring Distance: Without supplementary lens from 1 m onwards, with supplementary lens 0.2 - 1 m possible Objects of only 1 mm diameter can still be measured accurately from a distance of 5 m. Min. Target Size: 0.3 mm at 1 m distance 0.1 mm at 0.2 m distance (with supplementary lens) Sighting Device: - true-sided, through-the-lens sighting with dioptric compensation - faded-in comparison marking, focusable lens Ausrichthilfe: Crosshead: horizentral: 360 ° vertical: 90 ° Display: 4-figure digital, LCD with background illumination Interface: RS232 for transfer of the measured values to a PC Adjustable Parameters: 1. Emissivity: 10 ... 100 % adjustable Increments 0.1 % 2. Time of automatic switching offOperation Voltage: 15V DC (400 mA) or 230 VAC via plug power supply unit (included in the delivery scope) Spectral Sensitivity: Partial measuring range I: 500 - 670 nm Partial measuring range II: 620 - 670 nm Partial measuring range III - VI: 650 - 670 nm Focus Correction: On lens and eye piece Ambient Temperature: +10 ... +45 °C Storage temperature: 0 ... 55 °C Housing: Aluminum Dimensions: 100 x 100 x 450 mm incl. lens Weight: PV 11 incl. Crosshead 3,1 kg Software: PZ 10/D optional

- 삼각대
- Carrying case

- 적용 : 텅스텐 필라멘트, Wire, 미세 금속/세라믹/화학 소재, 원자흡광도 연구,진공로/핵원자력 연구, 대학


Application Note 자세히 보기
1.크리스탈그로잉
