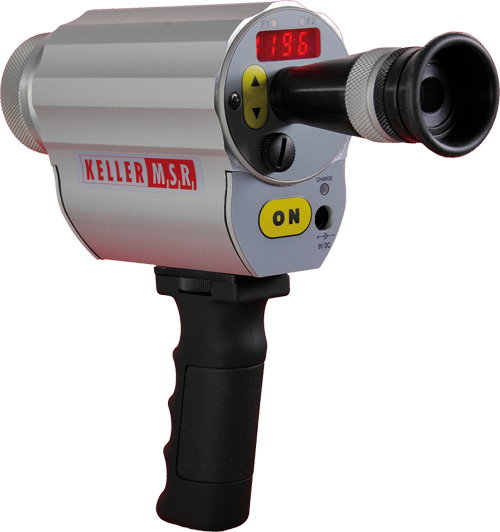

PT-고급형,휴대형
HOME > 제품소개 > 적외선온도계(KELLER) > PT-고급형,휴대형
| Product | Features & Benefits | Data |
|---|---|---|
 |
|
카다로그
| Measurement parameters | |
|---|---|
| Measuring range | 400 - 2000 °C |
| Sensor | Thermopile |
| Spectral range | CO₂-Bande |
| Response time t98 | ≤ 100 ms |
| Measurement uncertainty | 0.75 % of temp. reading [°C] + 1 K |
| Repeatability | 2 K |
| Temperature coefficient | 0.04 %/K |
| Resolution interface | 0.1 K |
| Resolution display | 1 K |
| Optical variants | |
|---|---|
| Lenses | Standard lens PZ 15.03: focusing 0.8 m - ∞ |
| Electrical parameters | |
| Interface | USB |
| Power supply | Rechargeable battery pack Battery life: approx. 15 hours (based on continuous operation at Ta=23 °C) |
| Features | |
| Sighting option | Through-the-lens-sighting |
| Display | 4-digit LED display red, digit-height 8 mm |
| Status display | 2 x LED external 3 x LED internal |
| Control elements | 3 buttons |
| General parameters | |
|---|---|
| Ambient temperature | 0 - 50 °C |
